Accurate inspection right next to your machine tool
Inspect your parts through every step of the manufacturing process.

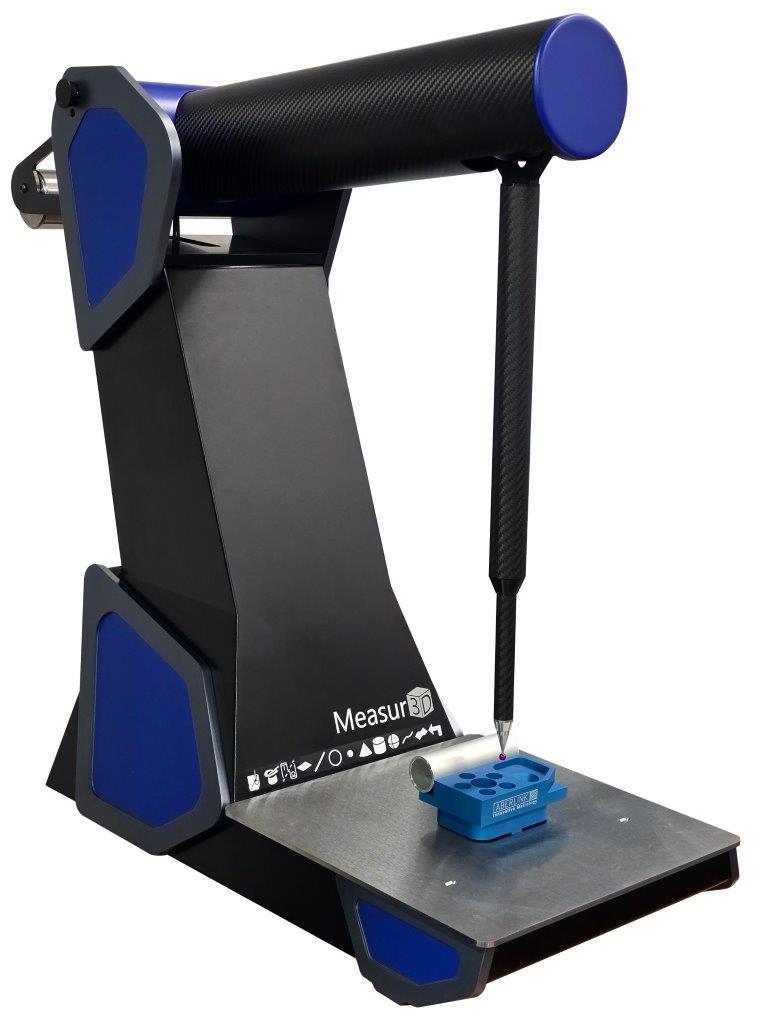

The Measur3D is a revolutionary manual CMM. By using three
rotary axis, Aberlink have created a compact and portable CMM

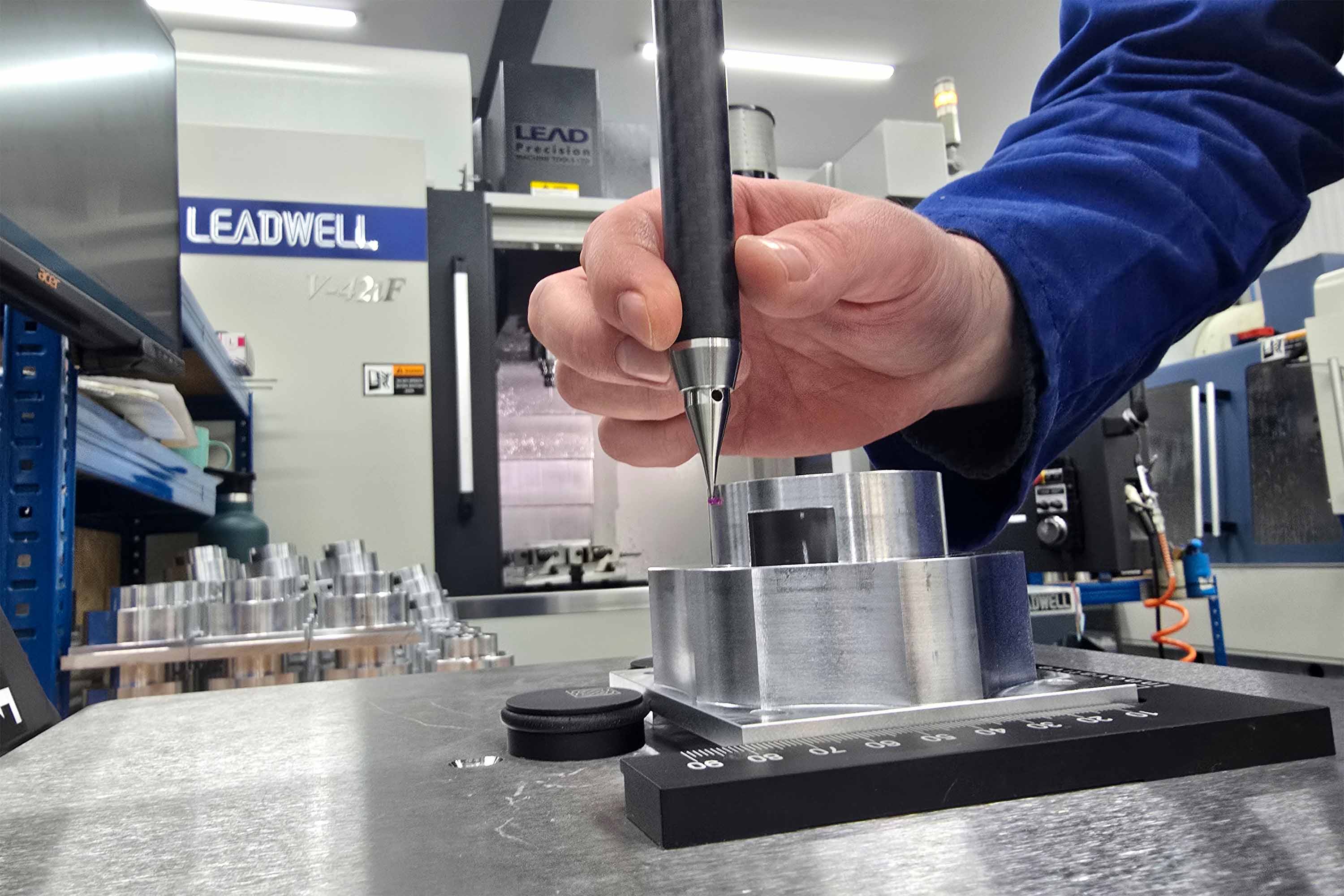

design enabling it to be used where it is needed, on the shop
floor, near your machine tools.
The Measur3D has been designed to optimize inspection as
parts come off the machine tool, one op at a time. It gives
immediate feed back to the machining process (manual tool
offset correction), before final inspection, minimising scrap and
rework costs.
Only needing a single-phase electricity supply (no compressed
air), you can plug it in where you need to use it. A simple user

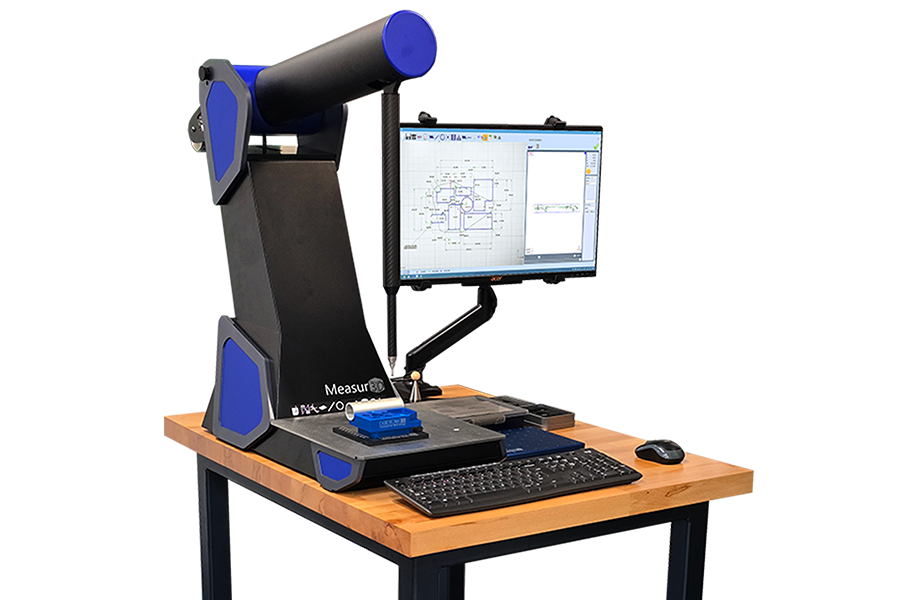

interface has been developed for Aberlink measurement
software, making it even easier to use on the Measur3D CMM,

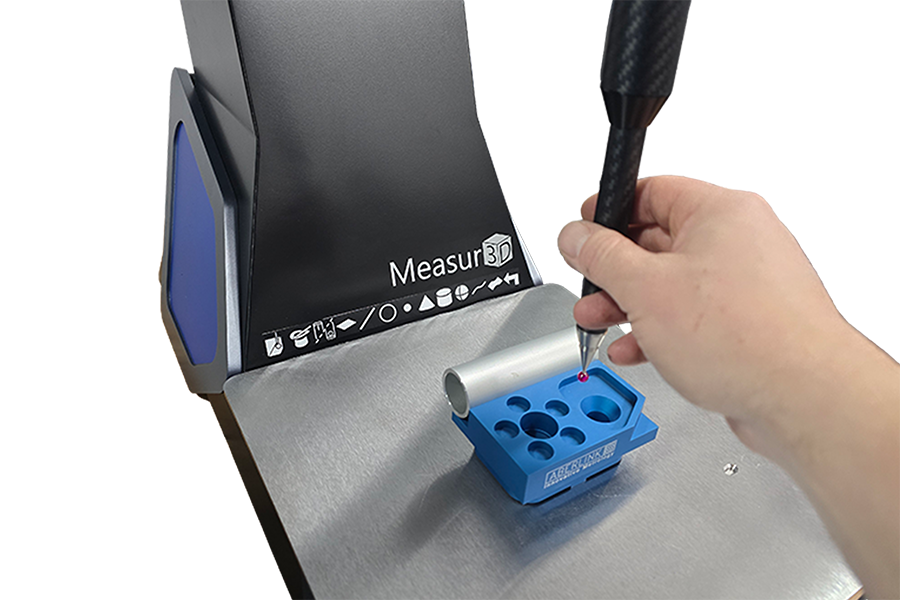

while retaining full functionality. After manually measuring the
part, using ‘touch mode’ or ‘constant contact scanning mode’,
critical features are automatically recognized, and dimensions
automatically displayed. No other manual CMM can scan a part
as quickly and easily as the Measur3D – It couldn’t be easier!
Intuitive easy-to-use software and innovative mechanical design
means you’ll be measuring your parts within minutes of switching
on the Measur3D machine, even with no prior CMM experience.
With 5-micron volumetric accuracy, thanks to 40-nanometre
resolution encoders, you can trust the inspection results. The
extensive use of carbon fibre through the design also means
it is able to cope with changing air temperature and maintain
excellent metrology performance.
